TIC announces the SDR-OMNI/MIL variation

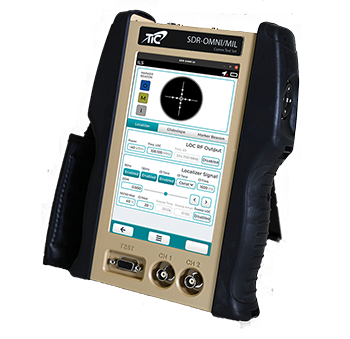

Tel-Instrument Electronics Corp. (TIC) ihas just released the SDR-OMNI/MIL P/N 90 000 165, NSN 6625-01-718-8522. The Military version of the highly succssful SDR-All-In-One Avionic Test Set. This unit keeps all of the standard avionics testing capabilities but also adds TACAN and Military Modes 1 & 2. This model is a direct replacement for legacy Tel-Instrument T-47 Series and the IFR 4000 and 6015 Test Sets.

SDR-OMNI test capability:

·      Modes 1, 2, 3A, 3C, S (EHS and ELS) Transponder with FAA Part 43 Autotest
·      ADS-B 1090 MHz and 978 MHz UAT (IN and OUT)
·      DME, VOR and ILS (with combined LOC + GS + MB)
·      TACAN – All 126 channels X & Y, A/A, A/G/ A/A BCN
·      HF / VHF / UHF COMM Radios (AM & FM) – with convenient “walkie-talkie” COMM check mode
·      SELCAL
·      ELT (406 MHz with 121.5 MHz / 243 MHz)
·      ACAS/TCAS I/II
·      VSWR / Distance to Fault (DTF) / Cable Loss
·      GPS Simulator (Q2 2024)

This is the most advanced flight line test set ever made and meets MIL-SPEC Class 1 specifications. The combination of hardware and software can test virtually any RF signal from 200 kHz to 1.6 GHz. As the lightest ruggedized tester on the market, the SDR-OMNI offers unmatched capability and ease of use.

Part Number 90-000-165

NSN 6625-01-718-8522
